Polymer Synthetic Plastic Fiber Optic Splitter Box 24 Cores With 1x8 Steel Tube G657A1

Name: Polymer Synthetic Plastic Fiber Optic Splitter Box 24 Cores With 1x8 Steel Tube G657A1
Brand: YINGDA
Price: 1.0 USD

Wholesale Polymer Synthetic Plastic Fiber Optic Splitter Box 24 Cores With 1x8 Steel Tube G657A1 from china suppliers

Brand Name : YINGDA

Model Number : GP62DW-3-6LC4

Certification : ISO SGS ROHS

Place of Origin : china

MOQ : 10 PCS

Price : 1.0USD-18.6USD

Payment Terms : Western Union, T/T, L/C

Delivery Time : 5working days

Packaging Details : 1 pc / box, 30 pcs/ carton shipping box

Capacity : 24 Cores

Cable ports : 3 cable glands

Dimension : 570*415*355mm

Material : Polymer synthetic plastic

Color : grey

adapter : 12 SC; 12LC DUPLEX

installation method : outdoor wall mount

splice tray : 1 pc

feature : optical distribution box

splitter : 1x8, 1x16 steel tube plc splitter

Contact Now

24 Cores Outdoor Grey Fiber Optical Splitter Distribution Box with 1x8 Steel Tube G657A1

Feature:

Suitable for protective splice for figure-8 or Φ3 drop cable and distribution for Φ12 cable termination

For wall mount applications

Built in swing out mini splice tray

Can accommodate up to a 1x8 splitter

Max capacity 24 LC( quad adapters) or 12 SC (simplex adapter)

Locking door with key

It is suitable for outdoor cable or indoor soft cable

Application:

Outdoor wall mount or pole mount

FTTH distribution or splitting

Specification:

Parameter	Value
PLC splitter	Mini module 0.9mm
Splitter installation position	Splitter fixing bracket
Adapter	SC,LC
Max ratio	1x8(SC);1X16(LC)
Max distribution	24Fiber
Splice tray	1 pc 15#
Cable	outdoor cable, indoor soft cable
Optional	PLC splitter,SC duplex adapter, LC 4way adapter
Box dimension	570415355mm
Package	20pc/Carton

Product details:

Polymer Synthetic Plastic Fiber Optic Splitter Box 24 Cores With 1x8 Steel Tube G657A1

Product Tags:

fiber optic closure

splitter distribution box

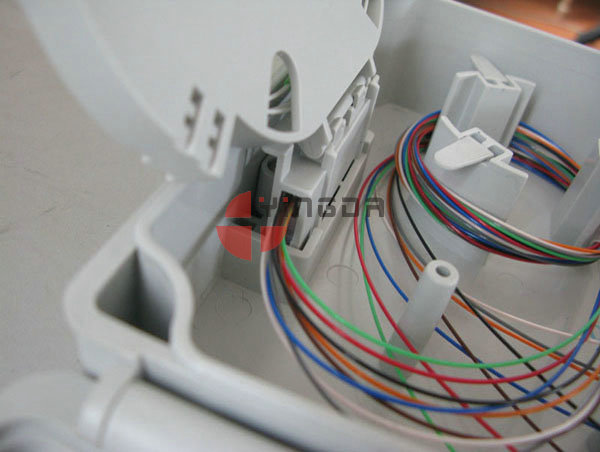

Polymer Synthetic Plastic Fiber Optic Splitter Box 24 Cores With 1x8 Steel Tube G657A1 Images
