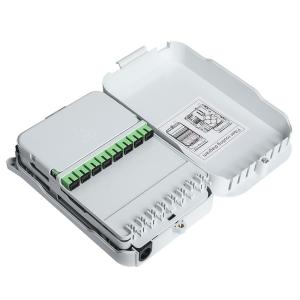

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Name: Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount
Brand: yingda
Price: 0.18 USD

Wholesale Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount from china suppliers

Brand Name : yingda

Model Number : FTB016A

Certification : ISO, ROHS, SGS

Place of Origin : china

MOQ : 100 pcs

Price : 0.18USD-4.29USD

Payment Terms : T/T, Western Union

Packaging Details : 1 pc / carton box, 20 pcs / master box

Material : ABS+PC

color : Gray

product name : fiber optic box

application : ftth indoor use

installation : wall mount

drop cable size : 2*3 mm flat drop cable

adapter qty : 16 pcs SC with shutter adapter

splitter qty : 2pcs 1x8 steel tube splitter

waterproof grade : IP55

box type : fiber optic terminal box

Contact Now

Ftth Indoor Wall Mount Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55

This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.

16 port Fiber Optic Splice Box Specification

Model	FTB016A
Dimension (WDH)	22014055mm
Max.Capacity	16 core (dual fiber)
Cable ports	2 in, 16out
Cable diameter	In:Φ13mm; out 2x5mm
Splitter quantity	2pcs 1x8 or 1pc 1x16 PLC steel tube
Splice tray quantity	2pcs
Adapter	16 SC

Plastic Optical Fiber Enclosure Features

Dust proof, RoHS proof with IP-55 protection level

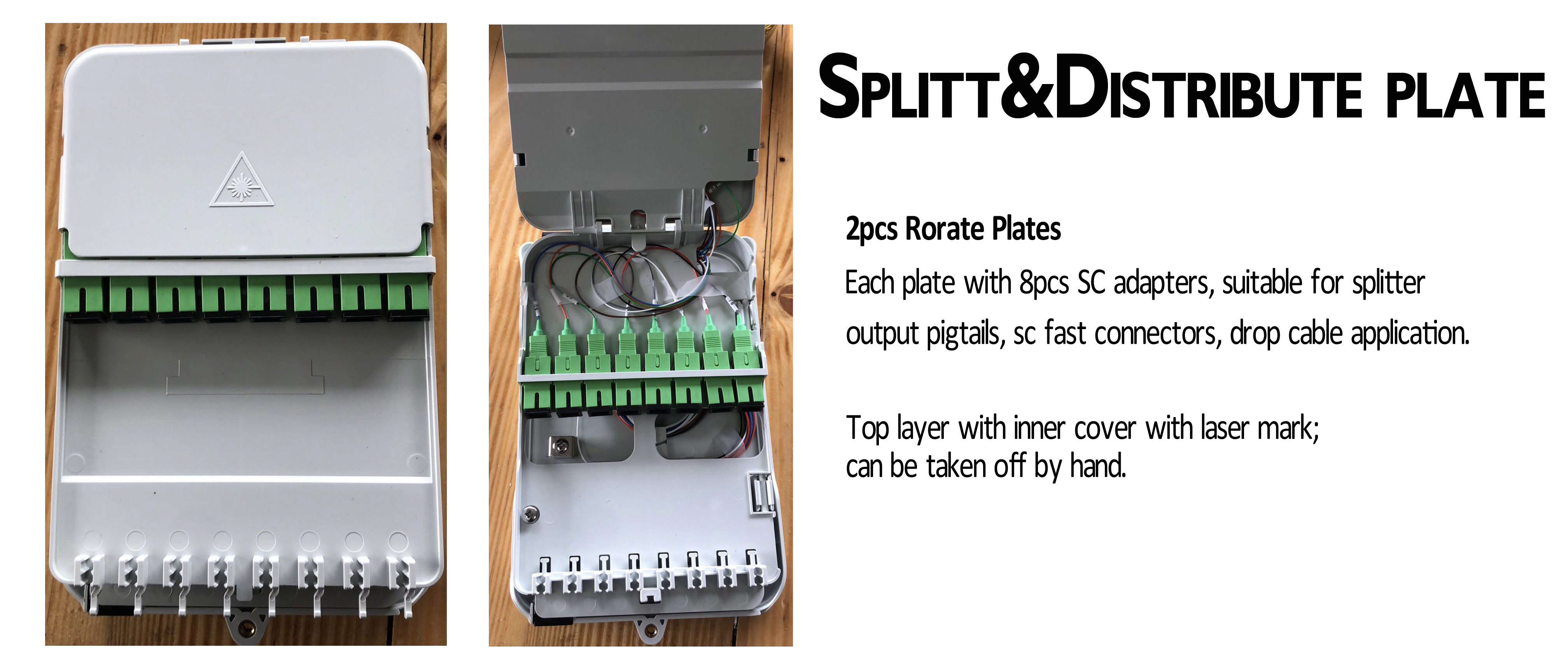

Integrated with 2 splice cassette and cable management rods.
Manage fiber in a reasonable fiber radius condition
Easy to maintain and extend the capacity
Fiber bend radius control more than 40mm
Suitable for the fusion splice or mechanical splice
Large area for efficient cable management and storage
16 ports exit for drop cable 2*5mm
2pcs 1:8 or 1pc 1:16 splitter with steel tube slots on the bottom
Distribution cable can go through the box without cut, best choice for ftth indoor construction.

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Fiber Optic Splitter Box Standard Accessory:

wall mount kits, heatshrink protection tube,nylon tie, sprial tube for 900um fibers,etc

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Fiber Optic Cable Terminal Box Pack information

Net weight	Inner box	Quantity / carton box	Carton box size	Gross weight/carton box
561g	cm	20pcs	493233cm	10.55kg

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount

Uncut Optical Fiber Cable Box Installation Method; WALL MOUNT

Plastic 16 Port Mid Span Fiber Optic Cable Termination Box IP55 FTTH Indoor Wall Mount
