Indoor IP54 12 Ports Outlet Plastic Fiber Optic Termination Box Fusion Splice MiniI Closure

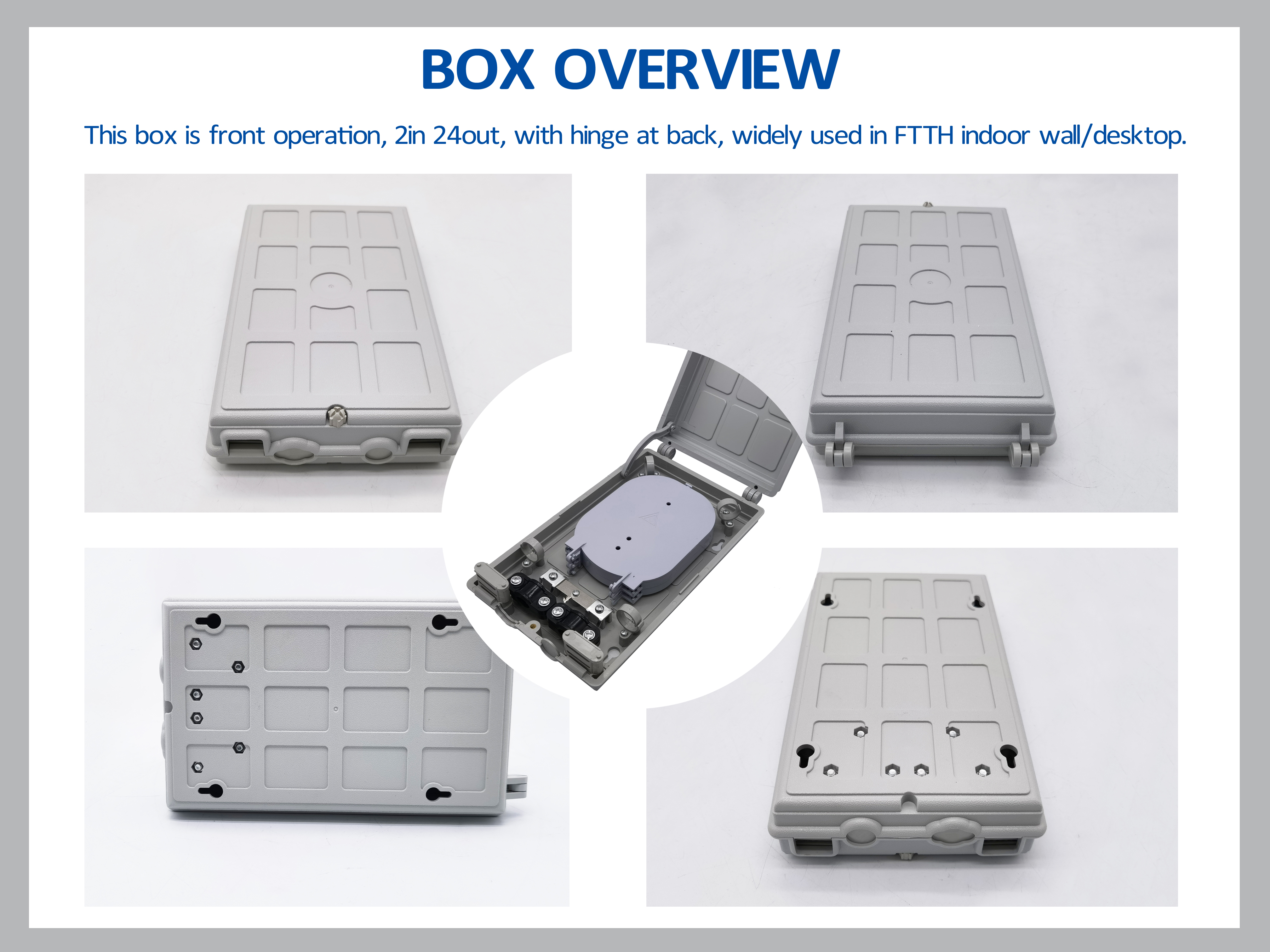

FTB002 optical cable terminal box is made of high performance plastic, and undergoes static plastic spraying treatment to ensure its reliability and stability; the box can be installed on the indoor wall and table; it is strong mechanical strength; it is capable of providing protection for the direct, terminal or branching connection of the fiber.
Connection function: layered turn-cover structure, equipped with special inside device to stop the connection tray from moving forth and back.
Reservation function: reserve the redundant fiber on the cabling rack outsie the connectdino tray to ensure the regularity of the fiber within the connection tray.
Specification
| Model | No. Of ports | Fiber optic splcie tray (FOST) including heat shrinkable protective cable | Max. Capacity (core) | Dimension(LXWXH) |
| FTB001 | 2 | FOST with 6 cores (1-4 pieces tray) | 24 pcs pigtails or 6 pcs of 12 core pigtails (with 48cores) | 265x153x55mm |
| FTB002 | 2 | FOST with 6 cores (1-3 pieces tray) | 12 pcs pigtails or 3 pcs of 12 core pigtails (with 48cores) | 198x112x45mm
|
Application
- Suitable for jointing fiber pigtail
- To protect fier optic splices and help to distribute
- It is a wall mounting or desktop type
- Mainly used in telecommunication equipment and network indoor and outdoor.
Features

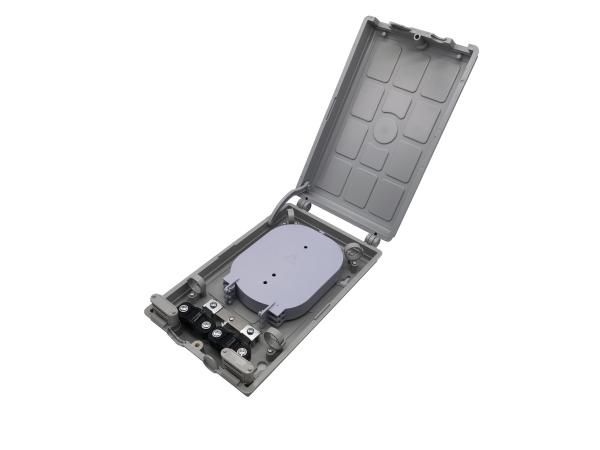

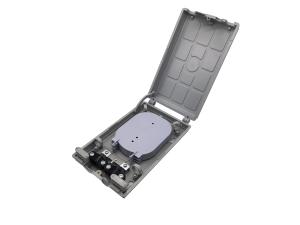

The structure of the terminal box is innovative, designed in up-down bisection.

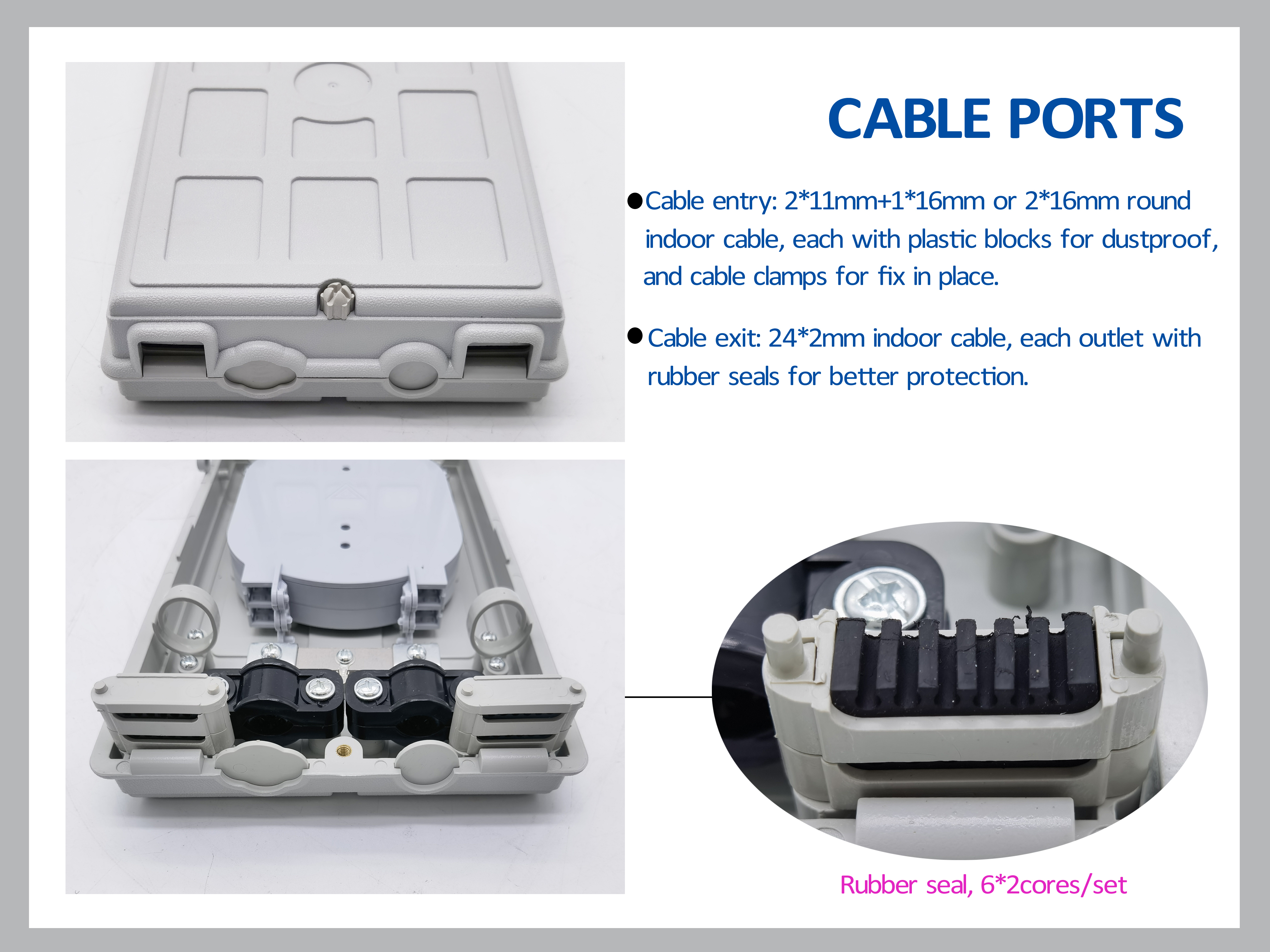

By un-tightening one piece of fixing nut, it succeeds in opening the housing and it allows fiber cable and fiber pigtail to pass in and out in single side.
The housing of the terminal box is made of high strength poly carbonate plastic materials, good mechanical strength, reliable and long-lasting.
Compact size, nice shape and beautiful appearance, large capacity, cost effective;
SLIDE-IN-LOCK fiber optic spcie tray FOST with its opening angle is above 90°, easy for installation and maintenance. The curved diameter meets with the international standard.
The capacity of tray is 6-12cores.
The elastic material is used to fix fiber pigtails. When the end of fiber pigtail can not be determined (it is not used for the moment), it is possible to wind fiber pigtails into clasp. Whenever it is needed, the active connector could be installed outside of the housing. Therefore it can connect termination equipment without connecting adapters.
Accesory list table
| Name | Unit | Quantity | Remark |
| Heat shrinkable protective sleeve | Pc | Configuration as per capacity | |
| Nylon tie | Pc | Configuration as per capacity | |
| Labeling paper | Pc | 1 | |
| Plastic shrinkable tube | Pc | 4 | |
| blots | Pc | 4 | |
| Manual | Pc | 1 | |
