Outdoor ABS Optical Splitter Box 8 Cores , Uncut cable Termination Box For 1x8 PLC Splitter White

Brand Name : YINGDA

Model Number : FDB0208B

Certification : ISO

Place of Origin : china

MOQ : 100PCS

Price : 1.0USD-18.6USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs per month

Delivery Time : 5-8 working days

Packaging Details : 1pc/box, 20pcs/carton box

Material : ABS+PC

Color : White, black

Output : 8 FTTH Drop Cable

Inport : 3pcs uncut ports

Dimension : 205*215*55mm

Adapter : 8PCS SC

PLC Splitter : 1:8 Mini Splitter

Usage : Indoor or Outdoor

Installation : Wall mount or pole mount

IP grade : IP65

Contact Now

Outdoor ABS Optical Splitter Box 8 Cores, Uncut cable Termination Box For 1x8 PLC Splitter White

FDB0208B fiber access termination box is able to hold up to 8 subscribers. It is used as a termination

point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing,

splitting, distribution, storage and cable connection in one solid protection box.

Features

  • 3inputs, 8outputs
  • Industrial standard user interface max. 8pcs SC/LC duplex
  • Made of high impact engineering plastic
  • Can accommodate 1x4, 1x8 PLC blockless splitter
  • Anti-UV, Ultra violet resistant and rainfall resistant
  • Outdoor wall mount or pole mount
  • Up to 8FTTH drops

Specifications

Model FDB0208B
Dimension (W*D*H)mm 205*215*55
Max.Capacity PLC 1x4 (2pcs); PLC 1x8(1pc)
Adapter 8pcs SC
Cable ports 3inputs(uncut ports),8outputs
Cable input port Max. 3 ports (Max. dia. : 12 mm)
Cable output capacity Max. 8 ports (Max. dia. : 3 mm)
Operation Temperature -40 ~ +85°C
Tensile Strength ≥ 450 kg, @10 mm/min
Impact Strength 35kgcm/(normal temp.), 10kg/ (-30) °C
Flexural Strength ≥ 450 kg/am, @10 mm/min

Packing informations

Model Qty/Carton Box G.W./KGS Size/Carton Box
FDB0208B 20PCS 14KGS 61*23*45cm

The back of adapter panel like below, there is a space to splice fibers and place PLC splitter steel tube.

Outdoor ABS Optical Splitter Box 8 Cores , Uncut cable Termination Box For 1x8 PLC Splitter White

After connecting the mini PLC splitter with adapters and splicing with main cable fiber, we can use pigtails or FTTH Drop cable to connect with the other side of adapters. Then the drop cables go through the 8 outports.

Outdoor ABS Optical Splitter Box 8 Cores , Uncut cable Termination Box For 1x8 PLC Splitter WhiteOutdoor ABS Optical Splitter Box 8 Cores , Uncut cable Termination Box For 1x8 PLC Splitter White

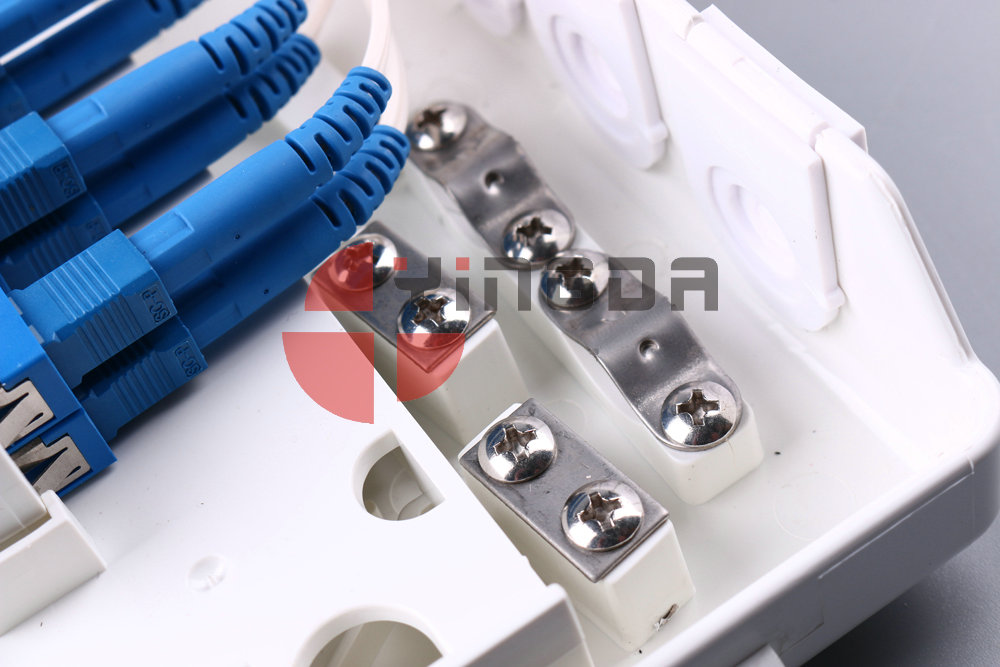

All metal parts are stainless steel.

Outdoor ABS Optical Splitter Box 8 Cores , Uncut cable Termination Box For 1x8 PLC Splitter White
