FTTB 12 Cores Fiber Optic Distribution Box , Plastic FTTH Fiber Optic Cable Termination Box
MODEL: FTB002
Description
This Fiber Optic Termination Box is suitable for jointing fiber cable and pigtail, and it protects
fiber optic splices and helps to distribute. The termination box is either a wall-Mounting type
or a desktop type, which is mainly used in telecommunication equipment room and network
equipment room.
Features
1. Light weight, small size, easy installation.
2. Provide splice connection protection of fiber cable and pigtail.
3. Made of engineering plastic material PC, which has mechanical strength, therefore it is
reliable and long lasting.
4. Slide-N-Lock fiber optic splice tray with its opening angle above 90. Therefore it is easy for
installation and maintenance.
5. Can be used for un-cut cable go through the box.
Specification
| Model | No of entry/ exit ports | Splice trays | Max. capacity | Dimension (LxWxH)mm |
| FTB-002 | 2 cable ports + 12 small ports for pigtails | 1*12F/ 2*6F | 12 | 198*112*45 |
Applicable fiber cables
FTB002 is applicable for splicing 2 pieces of fiber cable with max. Diameter φ16mm.
Package information
| Model | CTN qty | CTN size/cm | GW.W./kg |
| FTB-002 | 48 pcs | 50*37*44 | 23 |

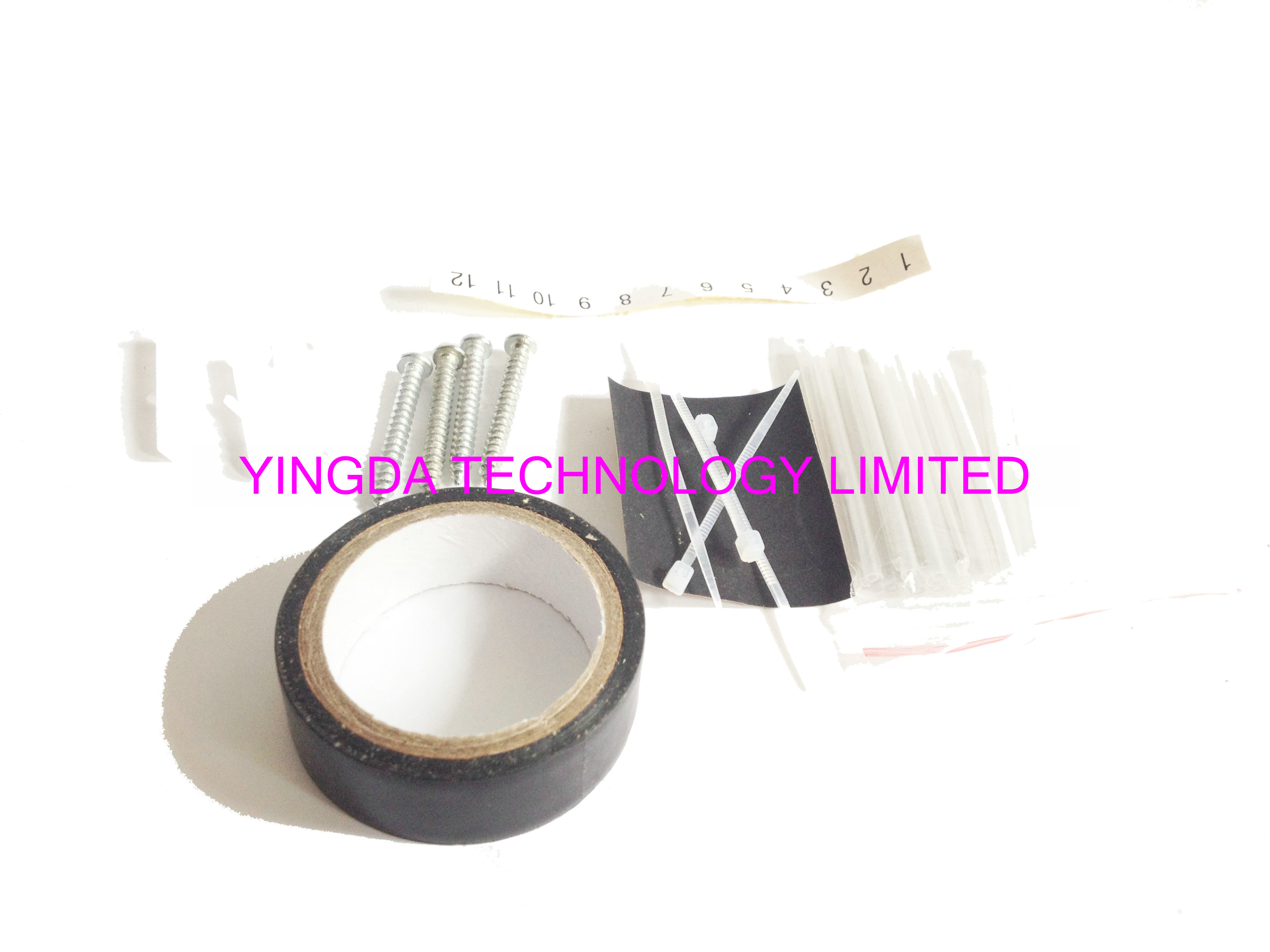

Standard Accessory:
Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures,
Cable Clamps,Strain relief combs, PVC tape, Cable ties, Labeling paper,
Wall mounting kits
More product show:

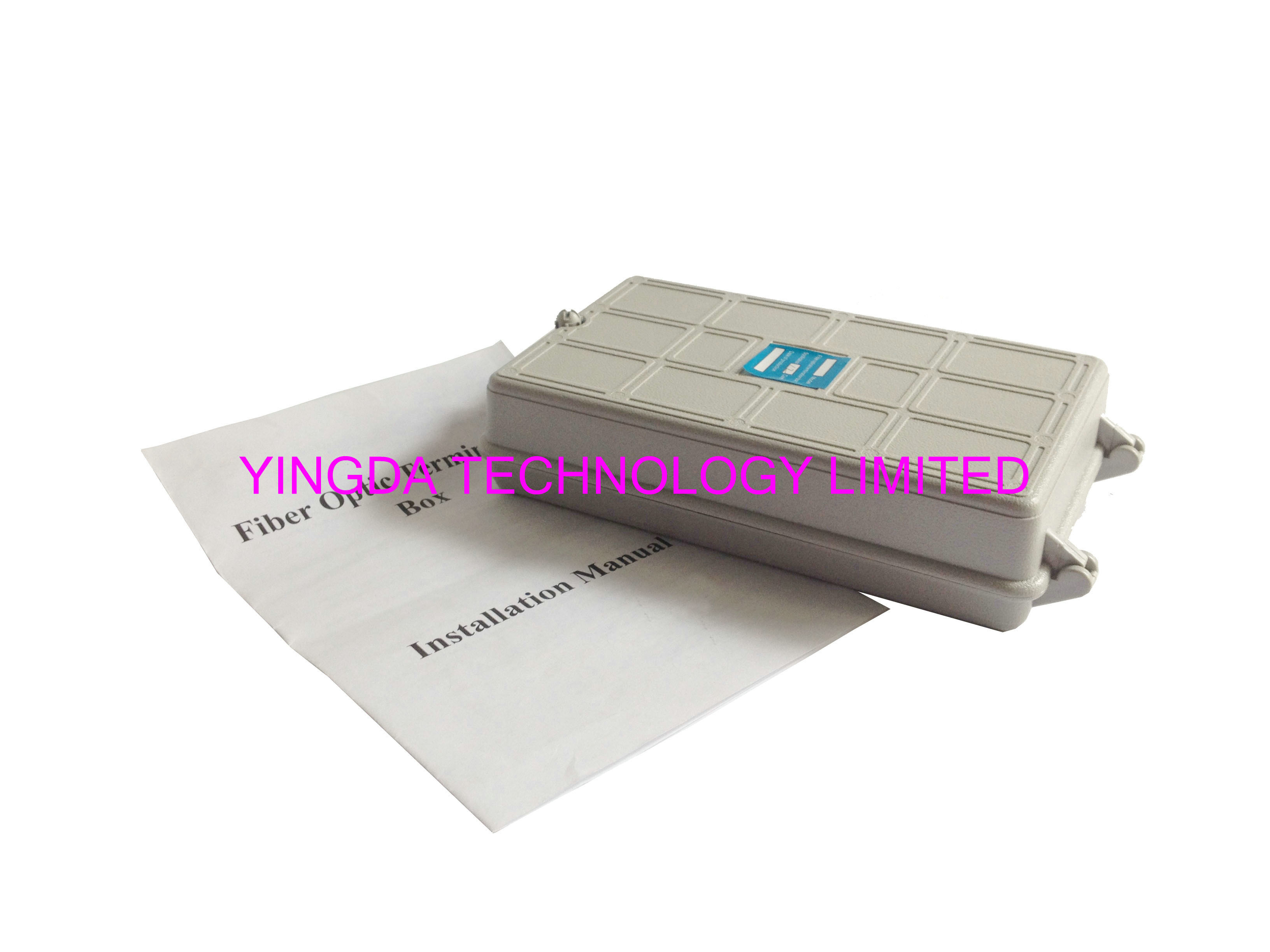

1 piece / box box with user manual (english)

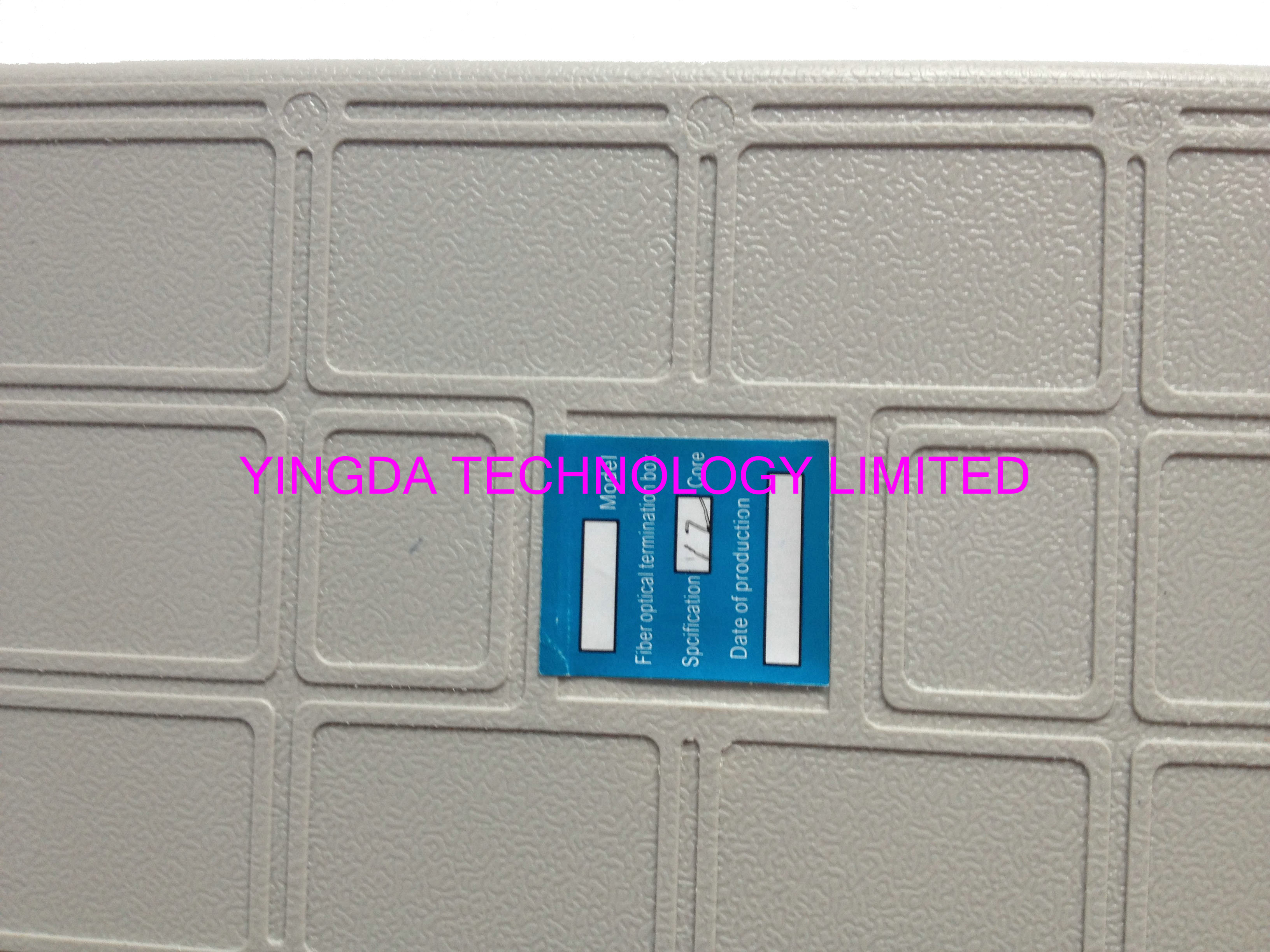

label -- box model:FTB002, max capacity:12fibers termination box overiview
front side view back side view
front cable ports: 2 ports: diameter 16mm, 12 ports: pigtails pigtails ourports with rubber sealing
