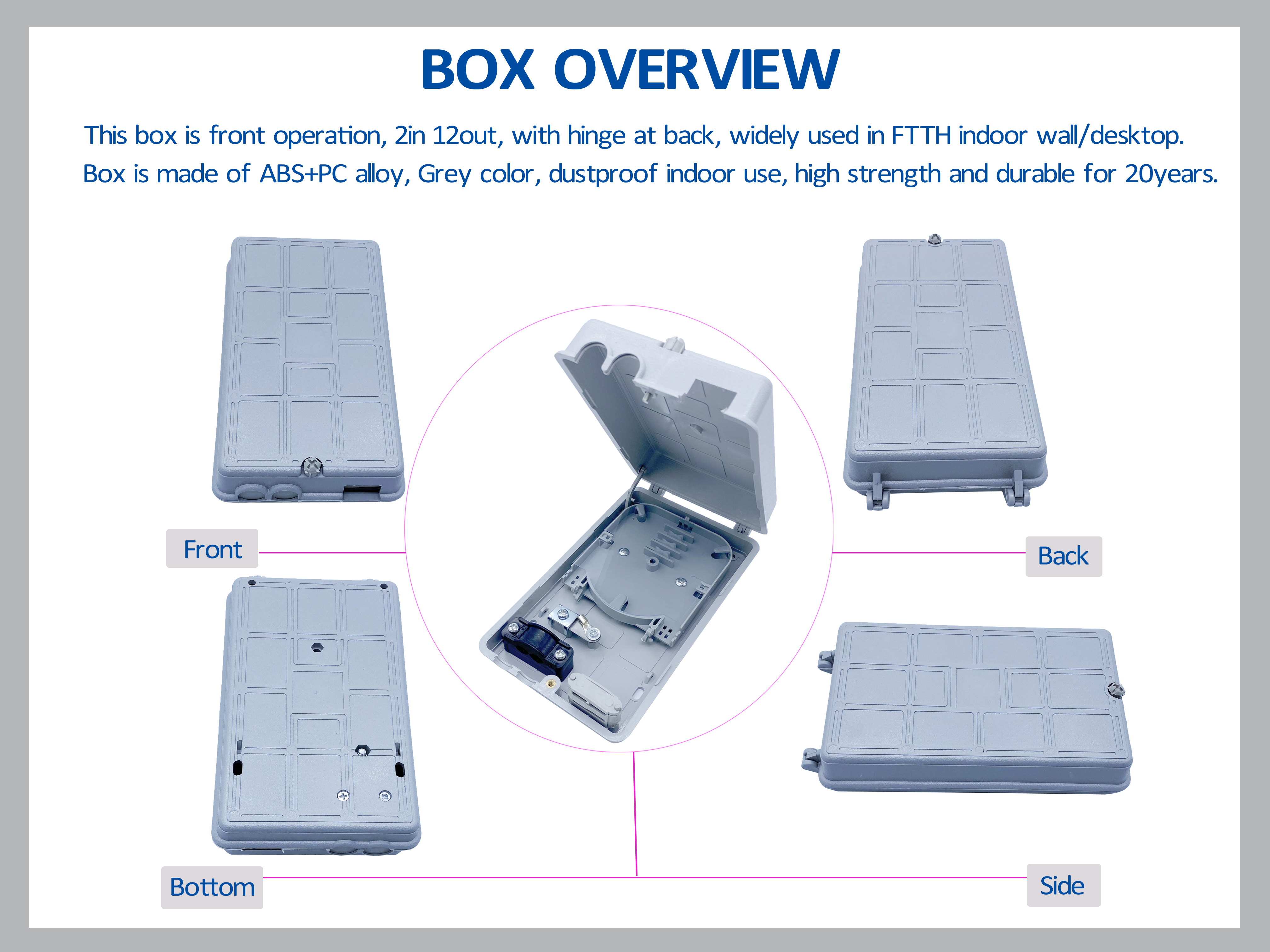

12 Ports Fiber Optic Pigtails Cable Terminal Box for FTTH Wall Mounted Mid Span Cables
FTB002 Fiber Optic Termination Box is suitable for jointing fiber cable and pigtails to protects fiber optic splices and helps to distribute.
The termination box is either a wall-Mounting type or a desktop type, which is mainly used in telecommunication equipment room and network
equipment room.
Specification
| Model | No of entry/ exit ports | Splice trays | Max. capacity | Dimension (LxWxH)mm |
| FTB002 | 2 cable ports + 12 small ports for pigtails | 1*12F/ 2*6F | 12 | 198*112*45 |

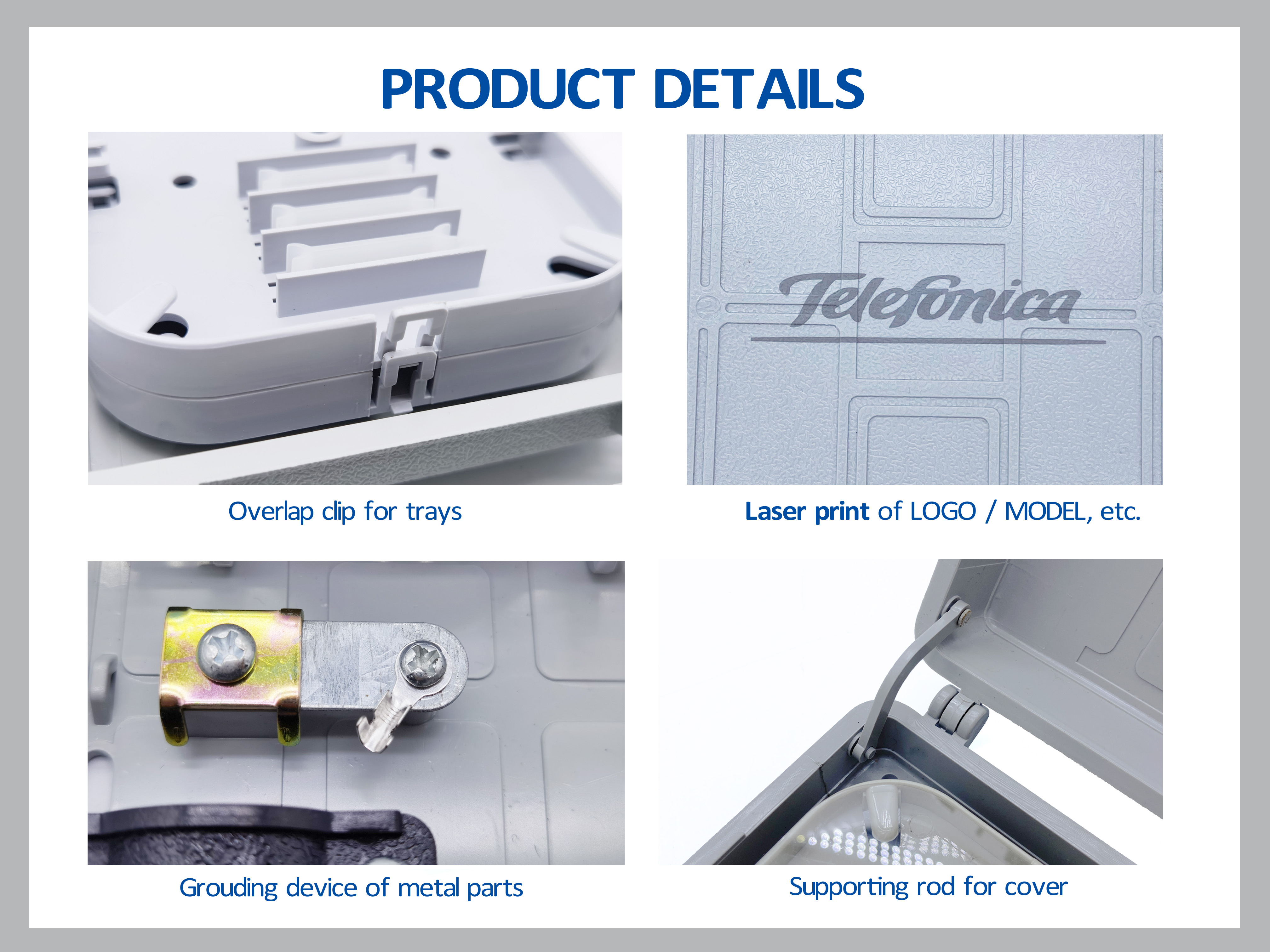

Features
Made of engineering plastic material PC, which has good mechanical strength, reliable and long lasting for more than 20years.
Light weight, small size, large capacity, simple and easy for installation.
Provide splice connection protection of fiber cable and pigtails.
Slide-N-Lock fiber optic splice tray with its opening angle above 90 degree, it is easy for installation and maintenance.
It support uncut feeder cable go through the box without cutting off, fast and good for ftth on site construction.
indoor wall mounted with screws, no need special tools.
Standard accessory:
Cover, Base, splice tray, Heat shrink protective sleeves, Strength member fixtures, Cable Clamps,Strain relief combs,
PVC tape, Cable ties, Labeling paper, Wall mounting kits
Optional accessory:
fiber optic adapters, fiber pigtails, indoor cable, outdoor cables, etc.
| Model | quantity / carton box | CTN size / cm | G. W. / kg |
| FTB002 | 50 pcs | 50*37*44 | 23 |
