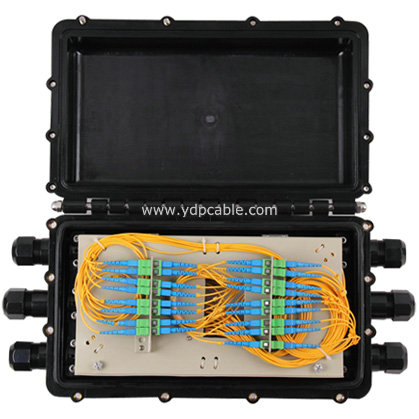

48 Fibres Inline Splitter Closure, PC 6 Ports Adapter Splitter Box
(FOSC), also called fiber optic junction box or enclosures. It is the cable terminated
access point, then connect with optical switch through the optical fiber jumper.
Sell point:
1. Max splitter: 1x16 PLC splitter mini module 0.9mm cable.
2. Inline closure, cable gland sealing with rubber inside
3. PC material, max. 48 fibers.
4. Max. 16 pcs SC adapters, have adapter panel inside.
5. 1tray for welding, 1 tray for splitter module.
6. 100% test PLC splitter, with test report inside.
7. Cable ports: 6round ports, diameter 20mm, each side 3pcs
8. OEM customer label ok.
Features:
- The closure adopts horizontal mechanical sealing and advanced internal structure design.
- It can be installed one 1:16 module PLC splitter.
- There are different drop cable elements to be chosen (Φ5 ,2*3) to input/output
- (special type can be customized).
- The closure is spacious enough for winding and storing fibers.
- The patented sealing structure keep good sealing performance after
- re-entry and re-using.
- It could save the installation time and improve work efficiently.
Applications
- Suitable for bunchy fibers
- Aerial, underground, wall-mounting, hand hole-mounting and duct-mounting
- It’s especially applicable to FTTH optical fiber distribution
Specifications
| Model no. | Splice Tray Capacity | Splitter Tray(Box Type PLC Splitter) | Number of adapters | Max. Capacity | Cable Dia. |
| GJS-2008 (Bunchy) | 12-24F per tray | 1 pc 1:16 | 16 | 48F | 6round ports: 8-20mm |
