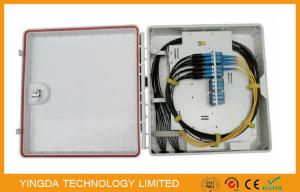

24 Cores Fiber Optic Distribution Box, 12 Ports Outdoor Cable Cabinet
Description
- GPDB-S24D plastic fiber cable distribution termination box is used for the distribution
- connection of cable and fiber optic communication devices.
- It leads out the optic signal from drop cable to pigtails by splicing in the box.
- It can be used for protective connection of cable and layout pigtails, and fiber optic
- terminations of optic access network.
- It is suitable for outdoor,corridor or weak current silo or collection points of villas,
- for the splicing,storage and distribution of local cable or drop cable, with capacity of 24core.
Features:
1. The box is made of imported flame retardant material,with aging resistant and ultra violet resistant characters;
2. Sealing with pressed strip,waterproof and dust-proof with IP65;
3. Special screw and key for its door lock,can be installed on wall or mounted on pole;
4. Temperature working:-40~+80℃, storage:-40~+80℃.
5. Spare pigtails and drop cable can be save in the storage part,convenience for maintenance;
6. Special lock device for outlet of drop cable,bilayer structure,bottom for splicing and upper layer for splitting and distribution. The installing plate can be turn over for convenience of installation and operation;
7. There are 24-48positions for adaptors FC,SC or ST;
8. Maximum 2pcs of splice tray for satisfying kinds of connection.
Specifications
| Model | GPDB-S24D |
| Cable ports | 12 pcs |
| Max capacity | 24 core |
| Dimension | 350*340*120mm |
| Splice tray | 12 core tray |
| Adapter | 24 pcs SC adaptor simplex |
| Material | pc |
Package information
| Model | GPDB-S24D |
| Carton size | 430*380*460mm |
| Carton quantity | 6pcs |
| Gross weight of carton | 20.9kgs |
